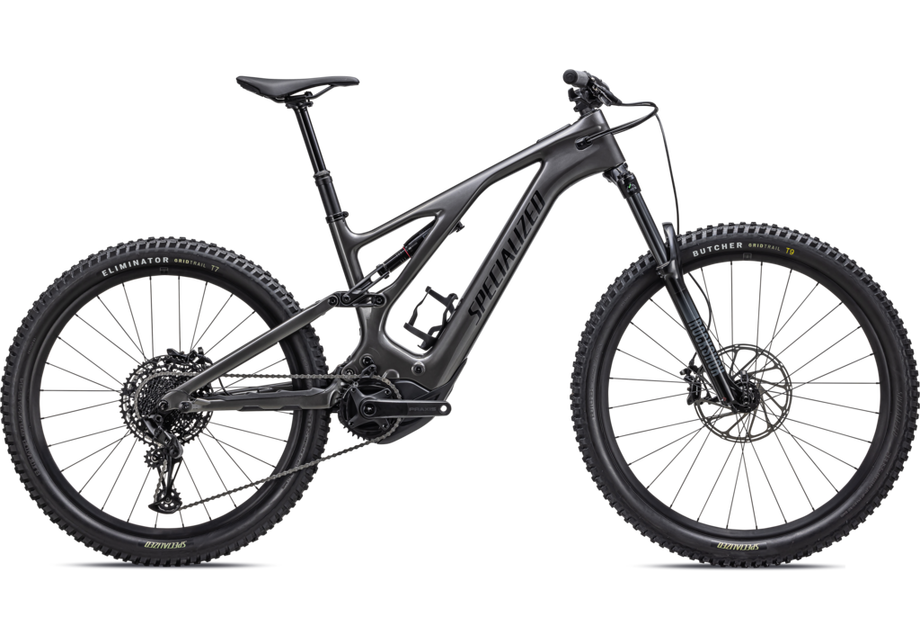

VTT Electrique Full-Suspendu Specialized Turbo Levo Carbon Satin Smoke / Black 2023

FRAMESET

Seat Binder

Alloy, 38.6mm

Frame

FACT 11m full carbon, 29″ front wheel, 27.5″ rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot

SUSPENSION

Rear Shock

RockShox Deluxe Select R, rebound adjust, S1: 52.5x210mm, S2-S6: 55x210mm

Fork

Rockshox 35 Silver 29, Turnkey damper, S1: 150mm travel, S2-S6: 160mm travel

COCKPIT

Stem

Alloy Trail Stem, 35mm bar bore

Saddle

Body Geometry Bridge Saddle, steel rails

Tape

Specialized Trail Grips

Handlebars

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width

SeatPost

TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6- 200mm

BRAKES

Rear Brake

SRAM Guide RE, 200mm

Front Brake

SRAM Guide RE, S1-S3: 200mm, S4-S6: 220mm

DRIVETRAIN

Crankset

Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm

Chain

SRAM NX Eagle, 12-speed

Cassette

SRAM NX Eagle, 12-speed, 11-50t

Shift Levers

SRAM SL SX Eagle, 12-speed

Rear Derailleur

SRAM SX Eagle, 12-speed

Chainrings

SRAM X-Sync Eagle, 104 BCD, 34T, steel

WHEELS

Rear Hub

Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h

Front Tire

Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29×2.6″

Spokes

DT Swiss Industry

Rear Tire

Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5×2.6″

Rims

Specialized 29, hookless alloy, 30mm inner width, tubeless ready

Front Hub

Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h

Inner Tubes

Standard, Presta Valve

E-BIKE

Wiring Harness

Custom Specialized wiring harness

Charger

Custom charger, 42V4A w/ Rosenberger plug, 100-240V

Motor

Specialized 2.2, Custom Rx Trail Tuned Motor

Battery

Specialized M3-700, Integrated battery, 700Wh

UI/Remote

Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote
