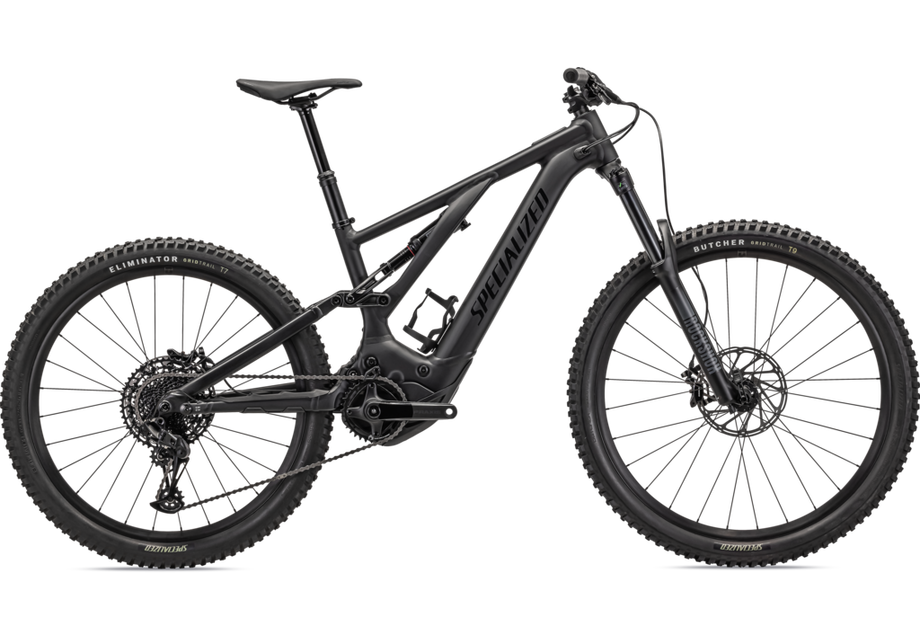

VTT Électrique Full-Suspendu Specialized Turbo Levo Alloy Black / Light Silver / Black 2023

FRAMESET

Seat Binder

Alloy, 38.6mm

Frame

Specialized M5 premium alloy, 150mm travel, 29″ wheel front, 27.5″ rear, BB height adjust, S-Sizing, internal cable routing, 148mm spacing

SUSPENSION

Fork

RockShox 35 Silver, 35mm stanchion, Turnkey damper, S1: 150mm travel, S2-S6: 160mm travel

Rear Shock

RockShox Deluxe Select R, rebound adjust, S1: 52.5x210mm, S2-S6: 55x210mm

COCKPIT

Stem

Alloy Trail Stem, 35mm bar bore

Saddle

Body Geometry Bridge Saddle, steel rails

Tape

Specialized Trail Grips

Handlebars

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width

SeatPost

TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6- 200mm

BRAKES

Rear Brake

SRAM Guide RE, 200mm

Front Brake

SRAM Guide RE, S1-S3: 200mm, S4-S6: 220mm

DRIVETRAIN

Crankset

Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm

Chain

SRAM NX Eagle, 12-speed

Cassette

SRAM NX Eagle, 12-speed, 11-50t

Shift Levers

SRAM SX Eagle, 12-speed

Rear Derailleur

SRAM SX Eagle, 12-speed

Chainrings

SRAM X-Sync Eagle, 104 BCD, 34t, steel

WHEELS

Rear Hub

Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h

Front Tire

Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29×2.6″

Spokes

DT Swiss Industry

Rear Tire

Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5×2.6″

Rims

Specialized 29, hookless alloy, 30mm inner width, tubeless ready

Front Hub

Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h

Inner Tubes

Standard, Presta Valve

E-BIKE

Wiring Harness

Custom Specialized wiring harness

Charger

Custom charger, 42V4A w/ Rosenberger plug, 100-240V

Motor

Specialized 2.2 Custom Rx Trail Tuned Motor

Battery

Specialized M3-700, Integrated battery, 700Wh

UI/Remote

Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote
